Split Heat Pump (Air Source)

How Does Heat Pump Water Heater Work Mammoth

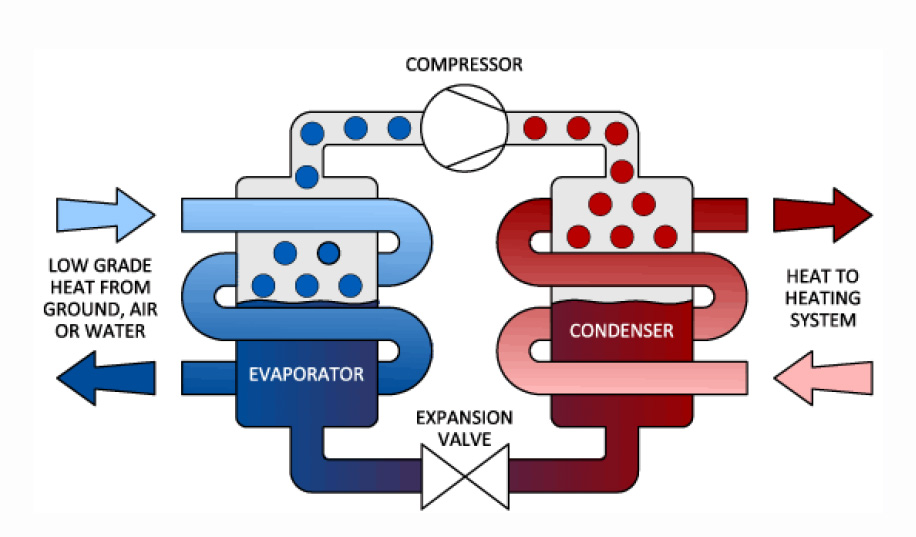

The technology inside the heat pump is similar to any domestic refrigerator, which uses a vapourcompression cycle. The main components in the heat pump are the compressor, the expansion valveand two heat exchangers (an evaporator and a condenser).

1. Refrigerant in the evaporator is colder than the heat source.This causes the heat to move from theheat source (in this case the outside air) to the refrigerant, which then evaporates.
2. This vapour moves to the compressor and reaches a higher temperature and pressure.
3. The hot vapour now enters the condenser and gives off heat as it condenses
4. The refrigerant then moves to the expansion valve; drops in temperature and pressure; and thenreturns to the evaporator.

WorkMammoth range uses a thermodynamic cycle to heat the water inside the storage tank through the airsucked by the thermal group inverting the heat natural flow. A Environment Friendly refrigerant fluid(R410a), through status changes, compression and expansion cycles, withdraws the heat in the air atlow temperature and gives it to domestic water at a higher temperature. This is the reverse mechanismto the one used in refrigerators. The product electric consumption is only the one necessary to let thefan (that captures the air) and the compressor (that allows the refrigerant fluid to circulate in thesystem) work.

Why are Heat Pump Water Heater an Environment Friendly Choice?

• Hiqh efficiency with a coefficient of performance (COP) above 4
• No fossil fuels are used or burned at the source
• Ozone layer-friendly refrigerant R410a
• Uses 4x less electricity than standard electric water heaters
• Taps into heat sources typically discarded by other units for peak efficiencyTechnical
